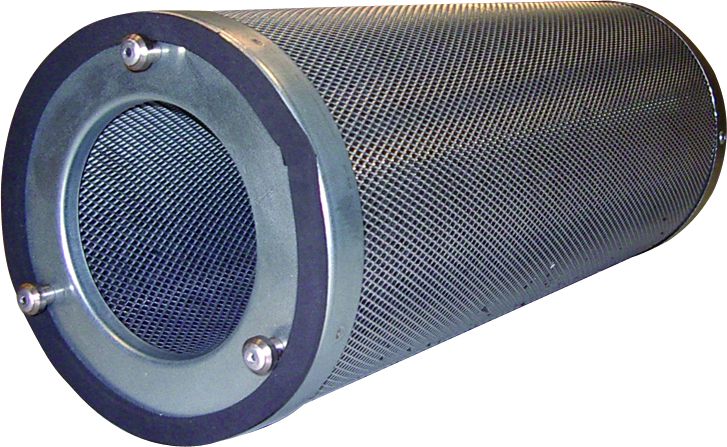

ACTIVATED CARBON FILTER CARTRIDGE
ACTIVATED CARBON FILTER
BLUE Activated carbon Filters are used in Air Handling Units, Ventilating Systems, Chemical processes as deodorisation and purification of the air.

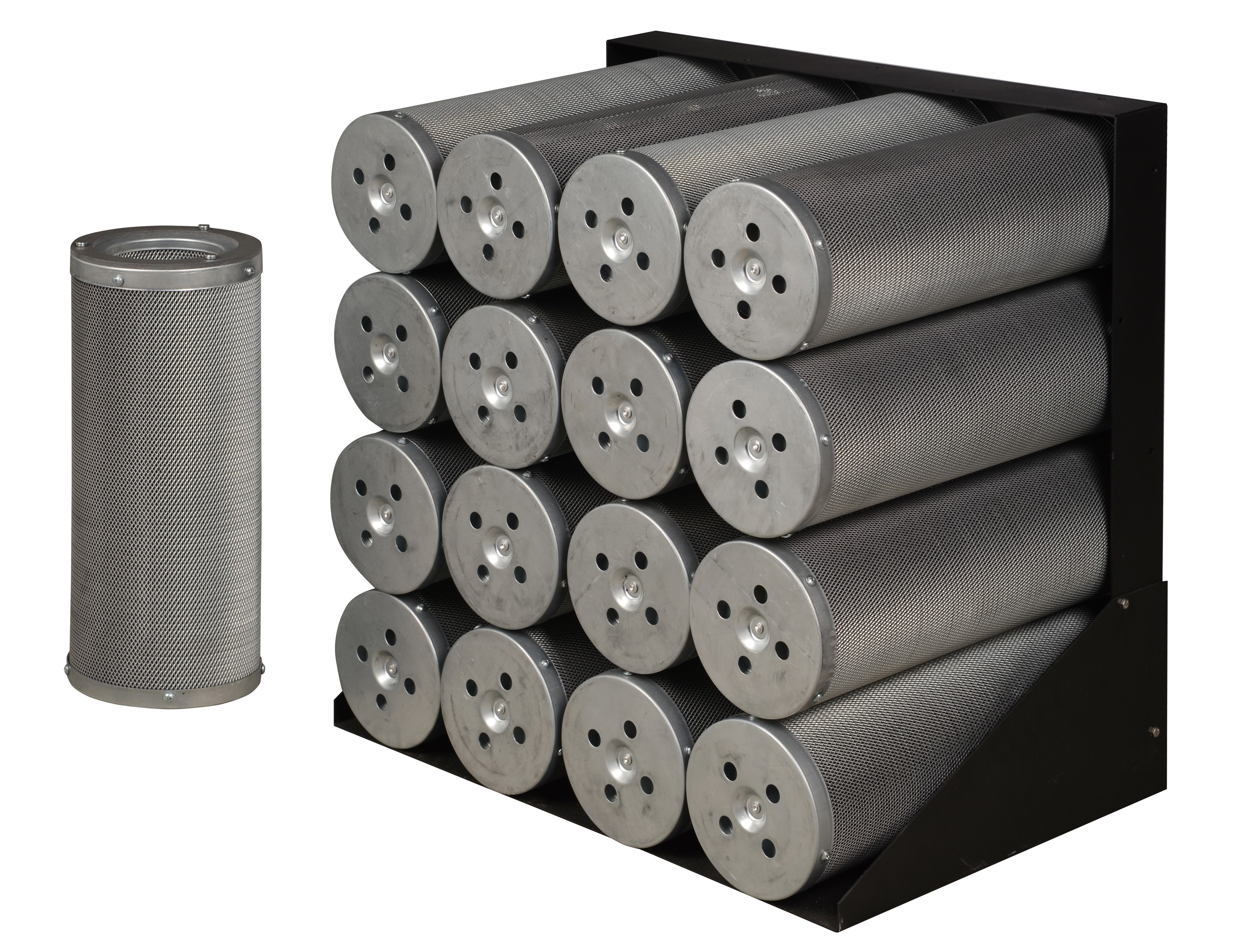

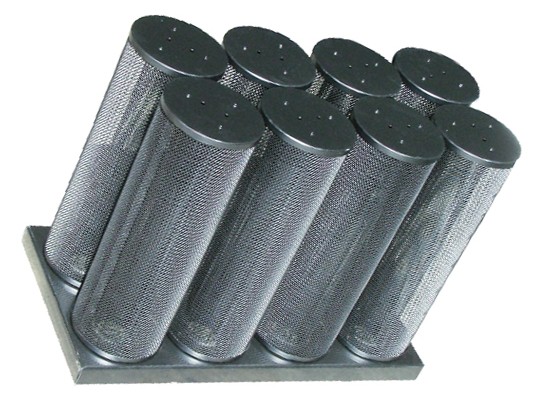

Manufactured and supplied with 8 or 16 groups. Depending on customer request, all combinations ara available.
Cartridge diameter is 140 and 160 mm.
Filter Thickness is 35 mm
Cartridge length can be 250, 400, 500, 600 mm on request.
Cartridge can be delivered as filled or empty.
Material : Black powder painted as standard
Galvanized or Stainless Steel as option
Activated Carbon Features: Total surface area>900 m2/g, Bulk density:500 Kg/m3. Diameter: 4mm
APPLICATION
Air streams from harmful gases, steams and bad smells in; Canteen kitchens, museums, Hospitals, laboratories, computer areas Chemical industry, paintshops, airports, petrol stations,parking garages
Manufactured and supplied with 8 or 16 groups. Depending on customer request, all combinations ara available.
Cartridge diameter is 140 and 160 mm.
Filter Thickness is 35 mm
Cartridge length can be 250, 400, 500, 600 mm on request.
Cartridge can be delivered as filled or empty.
Material : Black powder painted as standard
Galvanized or Stainless Steel as option
Activated Carbon Features: Total surface area>900 m2/g, Bulk density:500 Kg/m3. Diameter: 4mm
APPLICATION
Air streams from harmful gases, steams and bad smells in; Canteen kitchens, museums, Hospitals, laboratories, computer areas Chemical industry, paintshops, airports, petrol stations,parking garages

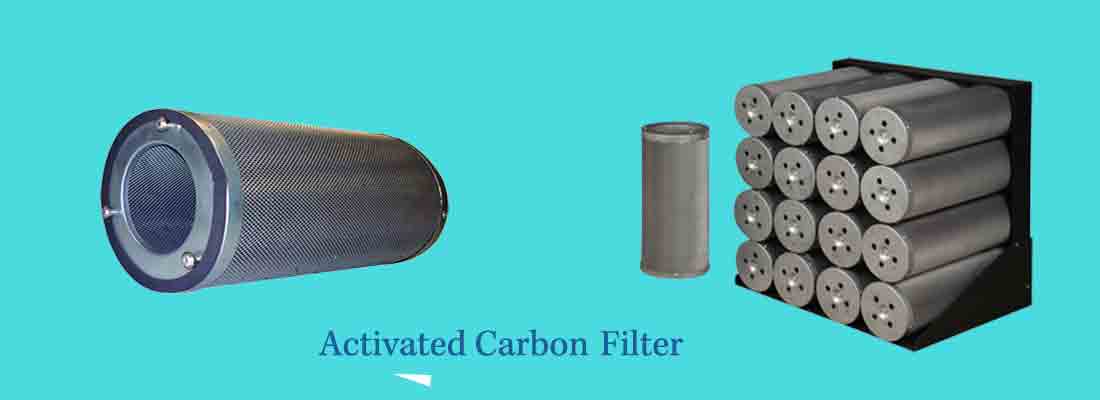

Activated Carbon Filter Cartridge
